Building Your First GraphQL Server

I don’t know if you’ve heard, but there's an awesome technology you can use for data fetching — it's called GraphQL.

It’s super fancy. 🎉

If you’re anything like me, you’ve built lots of RESTful servers. When you finally take a break to squash your existential dread and document 150 new endpoints, you might start wondering if there’s a better way to live your life.

On top of that, you might start to notice that your server often delivers too much information that’s unneeded for a given request. When the client makes a request from your server, it ends up getting the entire forest along with the single tree of data (I know, my examples need work).

This is where GraphQL comes in. GraphQL is fast replacing RESTful APIs everywhere you might look, and more-and-more companies are claiming that it’s sped up their applications significantly.

As always, grab a cup of something good. ☕️

Strap in. This one’s crazy, but I think you’ll find it‘s worth it in the end.

Graphs are all around us in life, and yet we never notice them. When you travel on public transit, discuss your family tree, or look at the stars and try to make out a bull or a large goat person shooting an arrow (like how I showed off my astronomy knowledge there?), we are unknowingly thinking in terms of graphs.

In computer science, graphs are connected points, and these points are traditionally called nodes or vertices. The lines that connect these graphs together are called edges. Here’s an example of a simple graph:

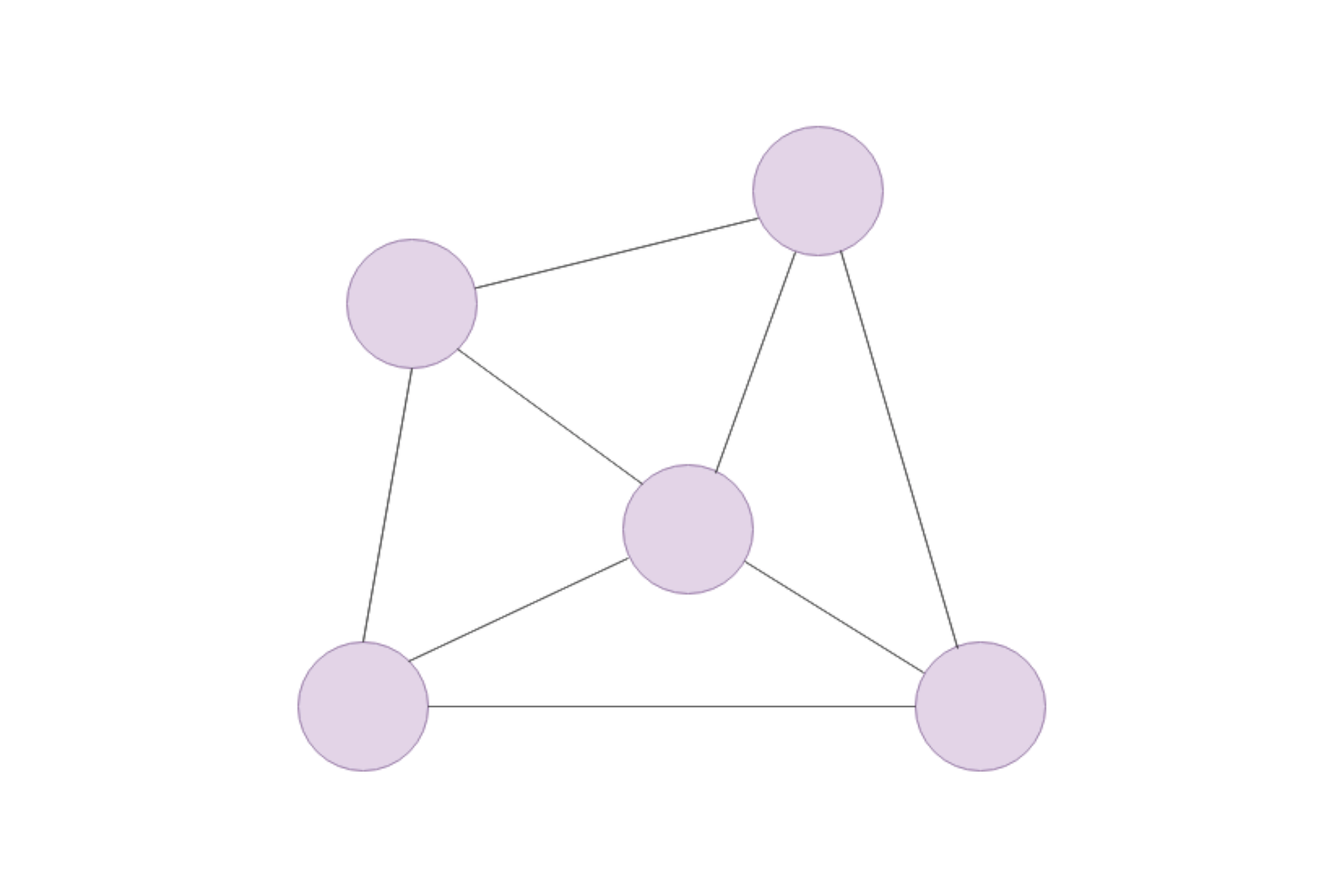

The graph above has five nodes (or vertices) and eight edges. Make sense, right?

Without getting into the nitty gritty of in-depth graph theory, we can access various nodes that are connected through edges by traveling along that edge to another node. In our data, this means that we connect different data tables together in a way that has significant meaning (this will make more sense later in the article).

This was one of the ways of thinking that allowed GraphQL to be born. Coupled with a general dissatisfaction for the current state of RESTful APIs in today’s data-heavy applications, Facebook decided to pioneer a new way to fetch data from their servers back in 2012 (and finally open-sourced it in 2015). By focusing on the data connections (instead of thinking in endpoints), they developed a new process for obtaining information from their servers.

GraphQL is, at its core, a protocol disguised as a data-querying language. It is a layer that sits on top of your server and interfaces with both the server and the client. Here’s an example of a query from the front-end that we could write later once we have the server built out:

When we fire this off (which we’ll see how to do soon), we get the following JSON data back:

Notice how the data directly parallels the query that we made? That’s super declarative code. We’ll talk more about that in a bit. For now, let’s hop directly into the deep end and set up a server. 🔥

We’ll be starting from a mid-way point with our server this time around, and I have something all ready to go for you. 👍

Go ahead and clone this repository for the starter files. This will catch you up to exactly where you need to be to follow along with this walkthrough. Once you clone it and open it up in your editor of choice (I’ll be using VS Code), you should have something very much like this:

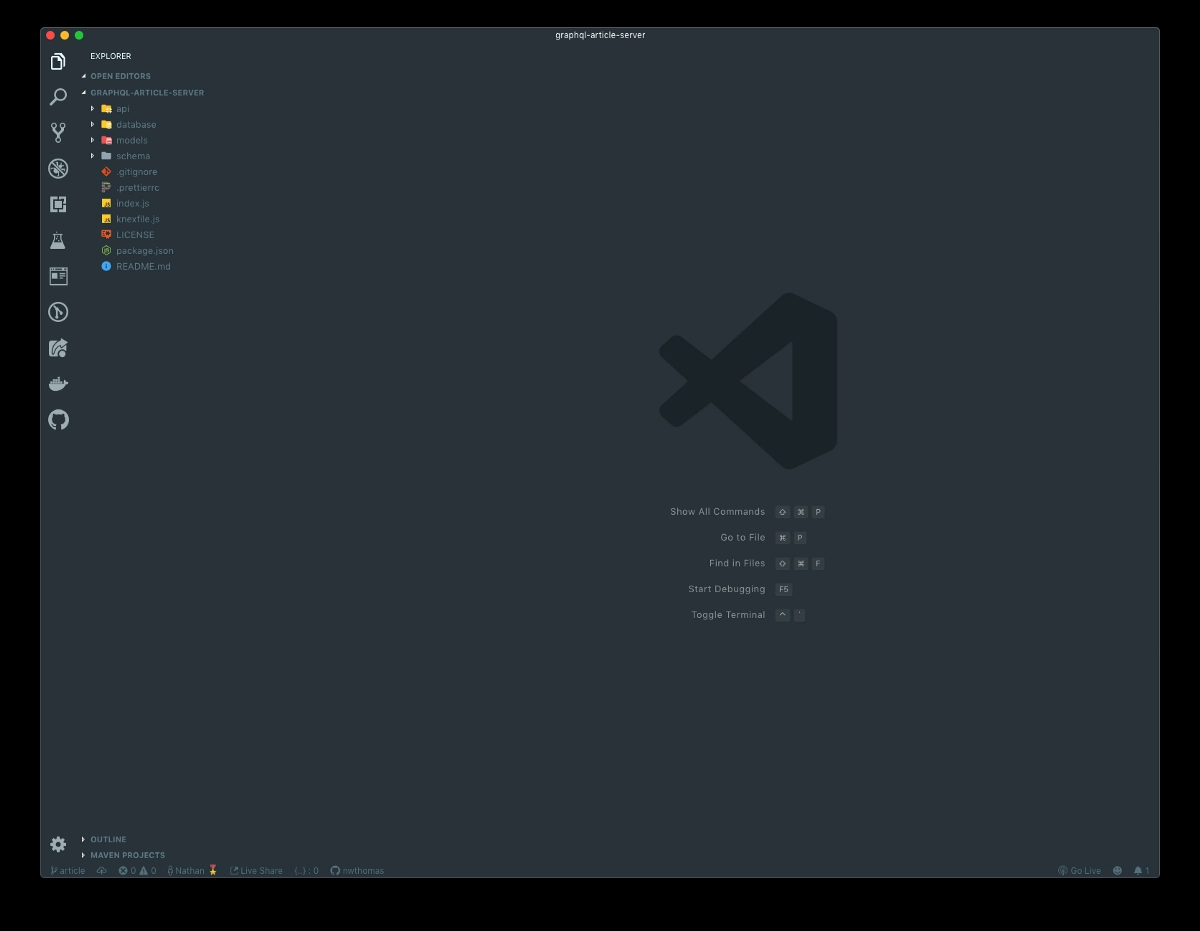

Make sure to use the command yarn to install all of your node modules as well. Once these have finished downloading, feel free to poke through the repository a bit and see what code is already finished for you.

We’ll be building out our API to allow us to work with users and their corresponding favorite candy. I’ve already built out a lot of the core functionality along with the migrations and dummy seed data files, and we’ll just be focusing on implementing GraphQL. 👍

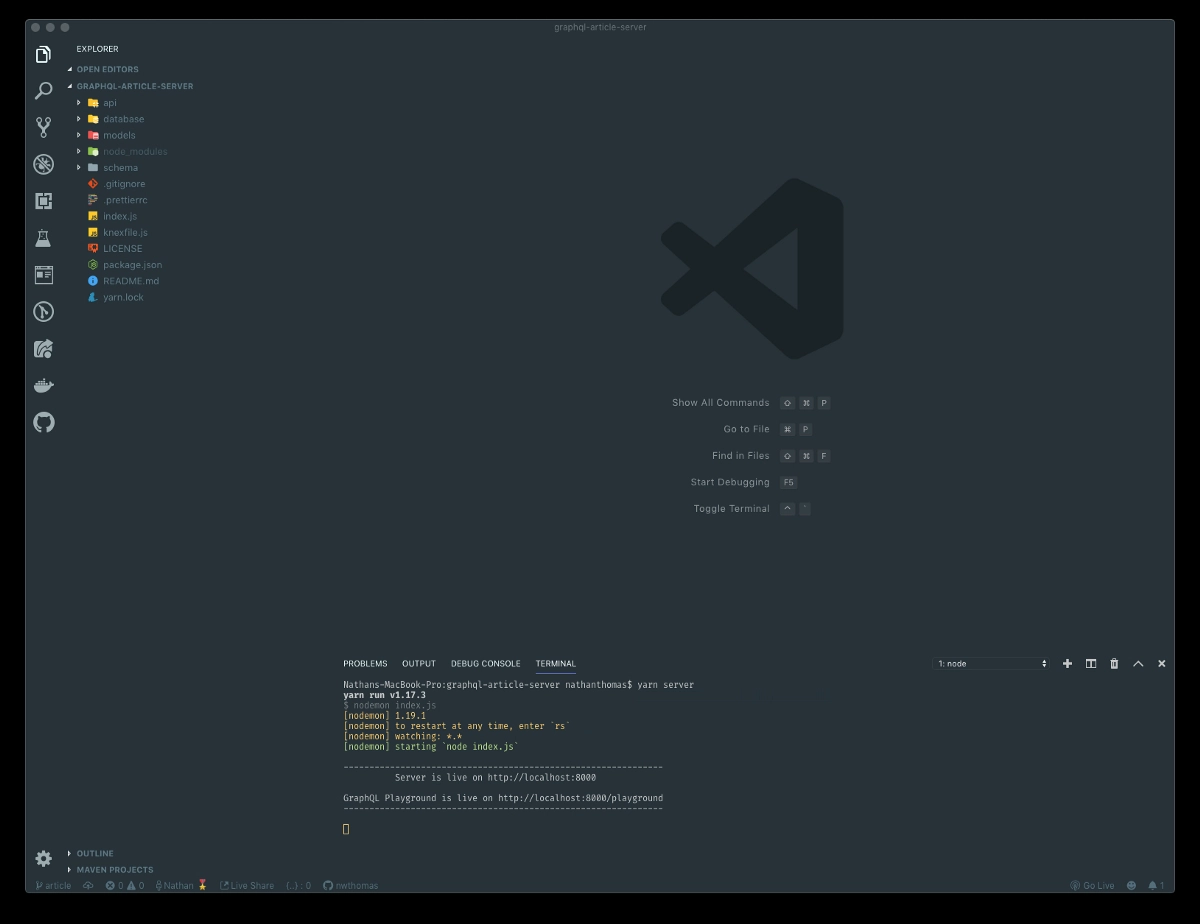

Go ahead and run the command yarn server in the root directory. You should see something much like this:

However, our server isn’t fully wired up yet. Before we go any further, let’s head into our next section and hook up some good old-fashioned PostgreSQL.

We’ll be using Supabase today for our database (purely because it’s super easy to grab a full instance of PostgreSQL), although you’re free to use a local instance of it if you want.

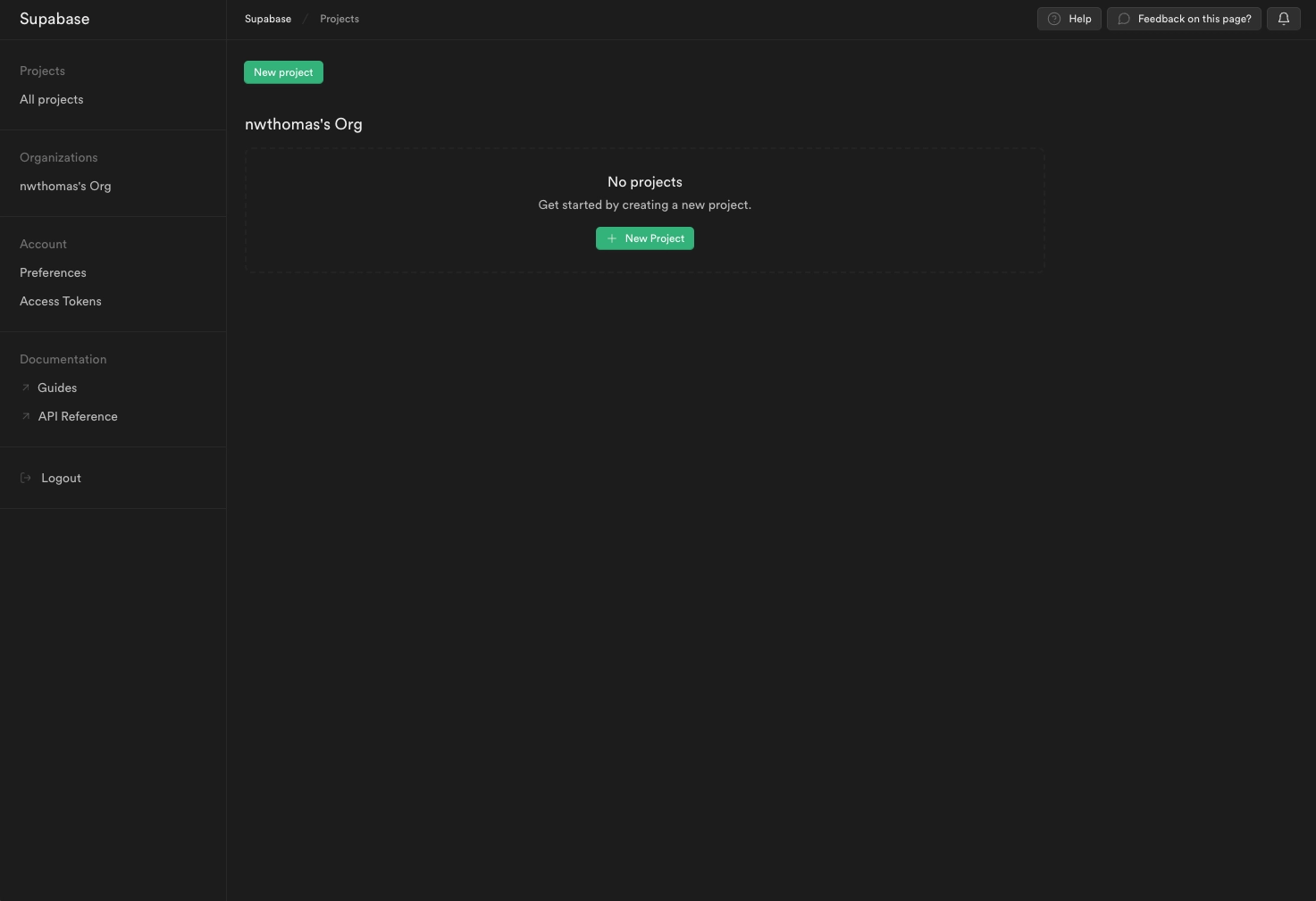

If you haven’t already done so in the past, create a Supabase account (website here). Next, you'll find yourself in the initial dashboard which will look like this:

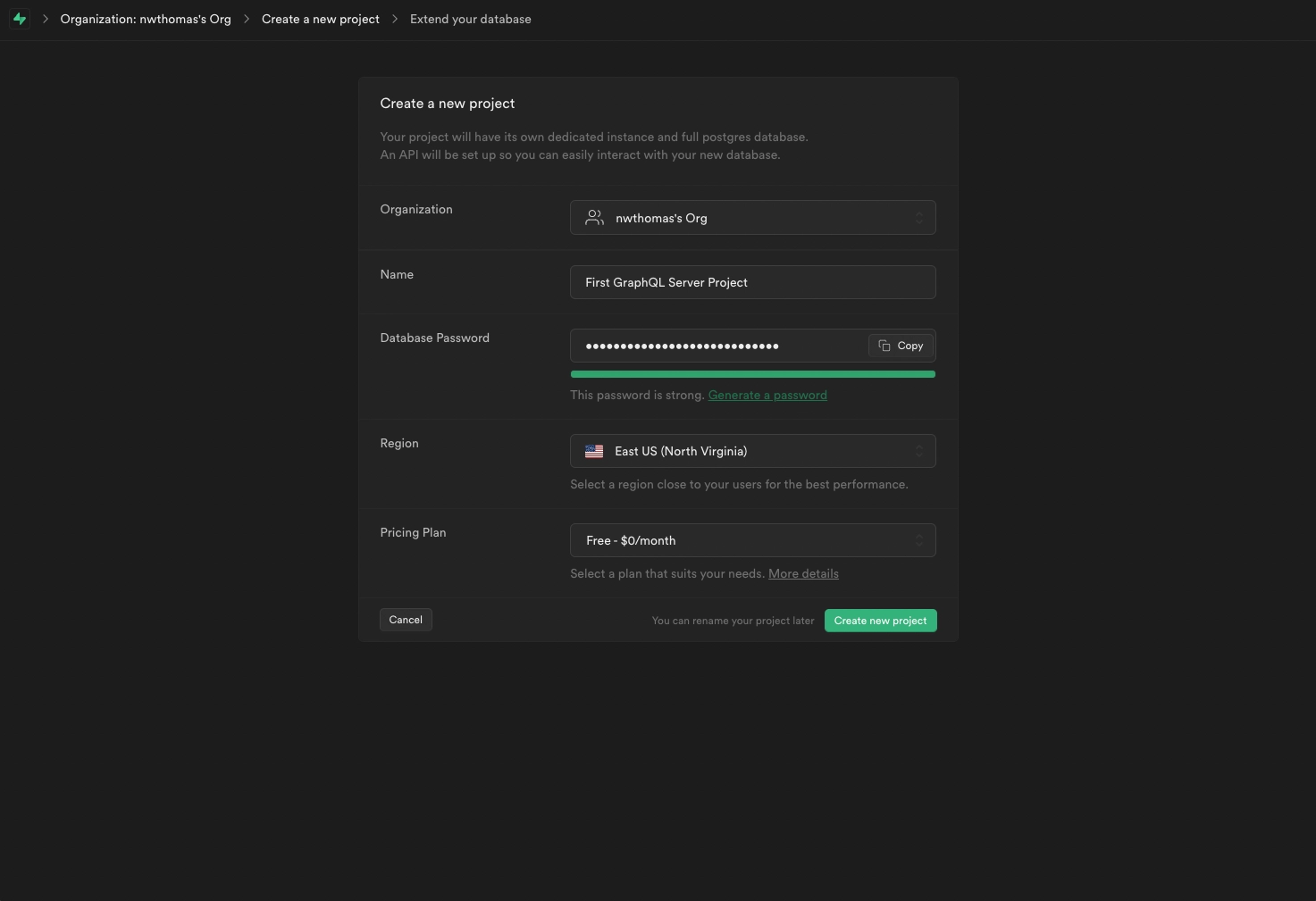

Next, click the "New Project" button. After you do that, you'll find yourself on a modal for details about your project. You can call it whatever you want, but here's what I filled it in with:

Remember your password. You'll need it later.

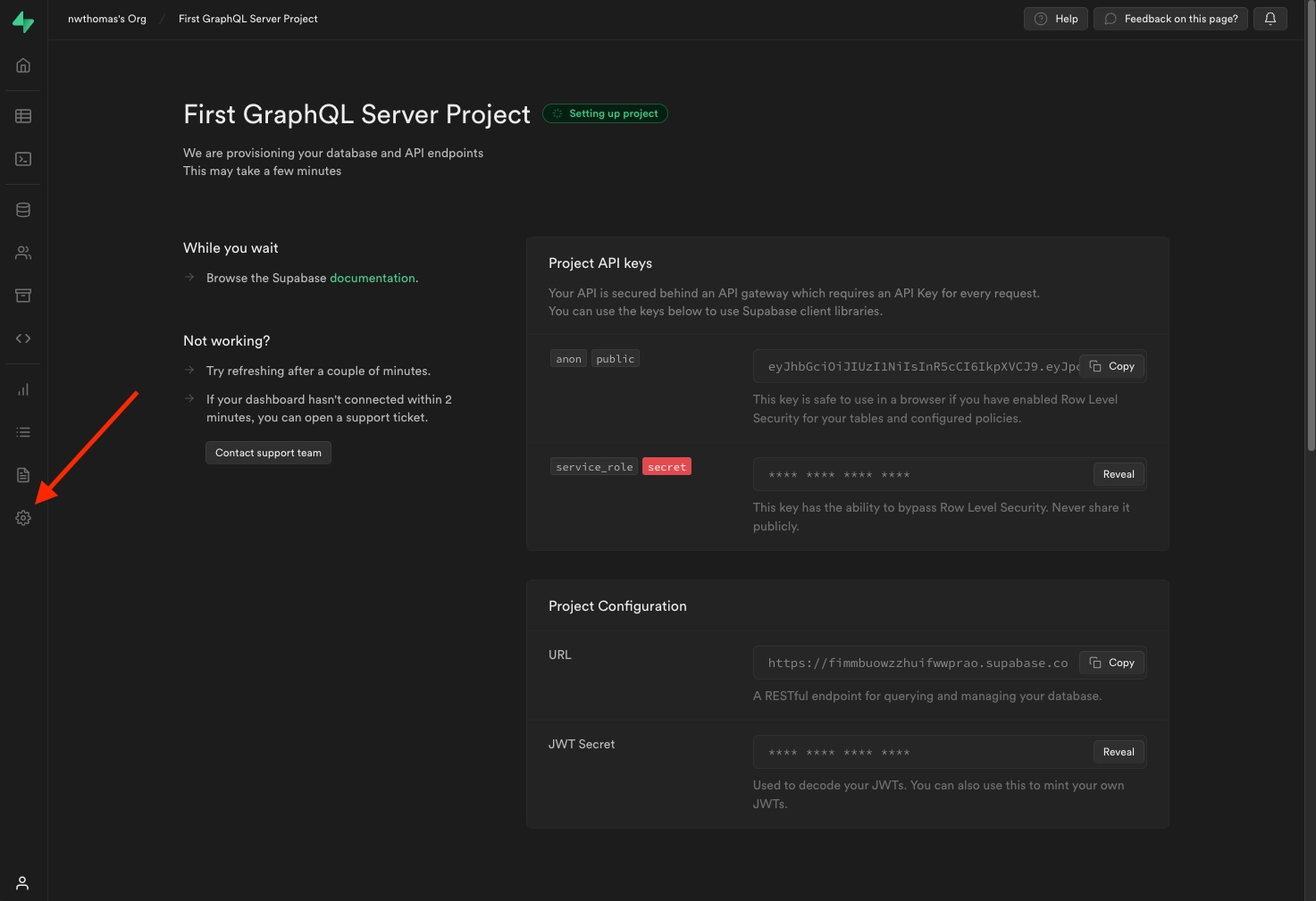

Next, you'll find yourself on the main page for your current project. You'll want to click on the "Project Settings" sidebar option right here:

From there, you'll find yourself on the "Project Settings" page. Click on the "Database" option on the inner sidebar and then scroll down until you see a "Connection string" area as shown here:

Copy the NodeJS URL. We'll use that in just a second.

Next, go to the repository that you cloned from me. Create a file called .env in your root directory and paste the following in:

You'll want to replace the portion of the database url that says [YOUR-PASSWORD] with your password that you created just a second ago. Make sure never to push this url up to GitHub.

This gives the boilerplate I made for you access to the PostgreSQL instance that you just set up, and we’re also assigning a custom port for your server.

With all of that out of the way, we can finally get to work on GraphQL. Go ahead and take a break to step outside. Grab some more coffee or tea.

Ready?

Let’s go. 💪

In a normal RESTful API, we have our typical GET, POST, PUT, and DELETE requests. These have been the gold standard for HTTP requests for years, and with good reason; they work, and they work well.

However, modern applications keep running into situations where developers have to build out an excessive number of endpoints. This can create a burden on the development process, and it certainly expands the amount of documentation that is required for the API.

In contrast, GraphQL simplifies everything down to one endpoint, /graphql. Open up the server.js file inside the api directory and look for the following code snippet:

This is the single endpoint, a gateway into our server. It will allow us to perform all of our queries and mutations (which replace our GET, POST, PUT, and DELETE requests). In order for our server to work, our next step needs to be to flesh out the schema that we use in the code snippet above. Notice that there’s already an import statement in our server.js file for it that looks like this:

Additionally, check out the expressPlayground middleware import that is also contained in our server.js file. The import statement looks like this:

Out of the box, GraphQL comes with GraphiQL, an IDE to practice server calls in your browser. I’ve replaced it with GraphQL Playground (and turned off GraphiQL with the graphiql: false statement in the snippet at the beginning of this section) as it is much more robust and better looking (which is obviously the most important quality in the development process 💅).

The configuration for this is also in the server.js file with the following code:

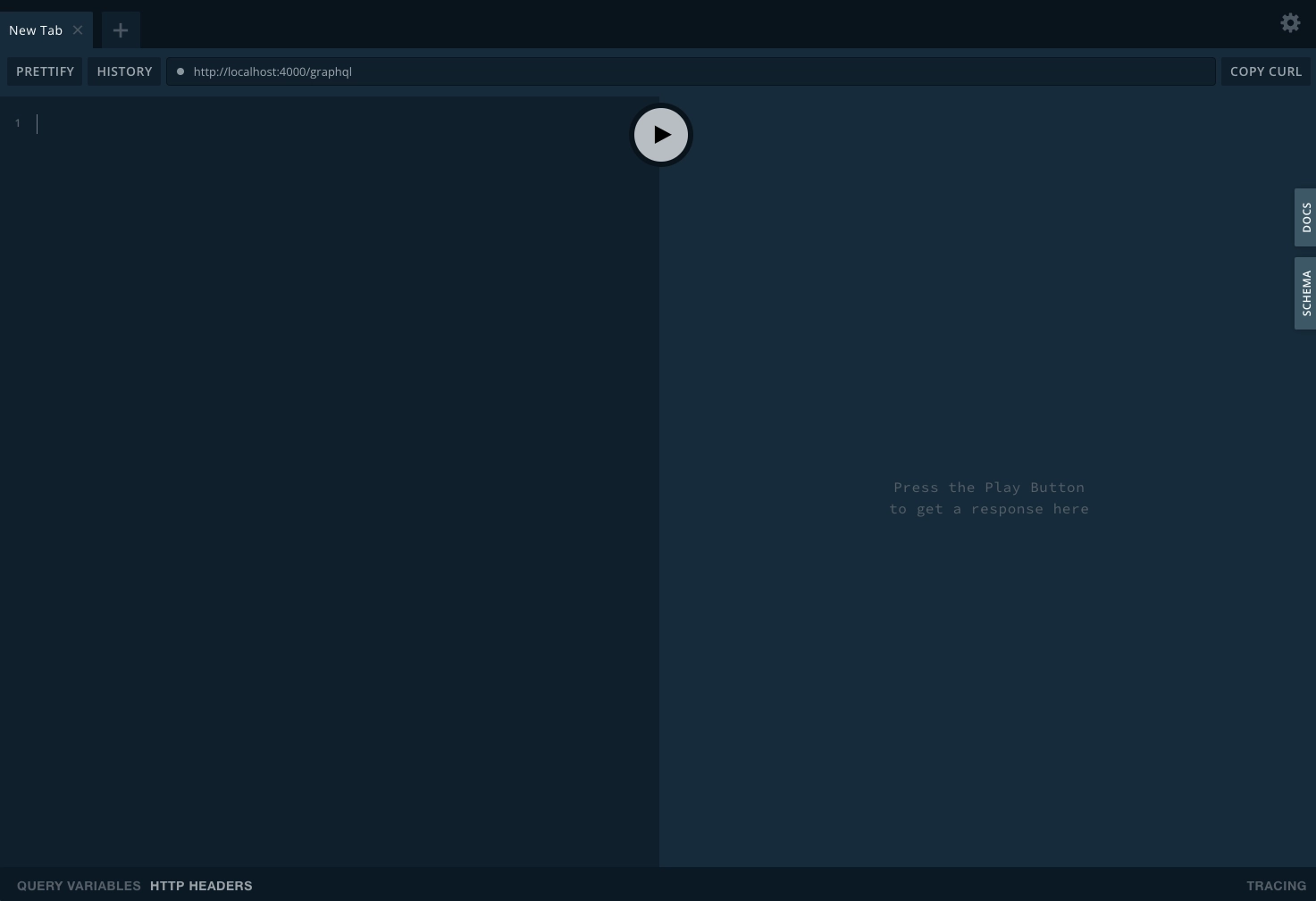

This allows us to use our new GraphQL Playground IDE. With your server running (which, just in case you shut it down, can be done with the command yarn server), got to localhost:4000/playground link in your browser. Your preferred browser will open up and you’ll be taken to a page that looks like this:

Doesn’t that dark mode in GraphQL Playground look amazing? If you’re seeing this, you’re in the right place. However, our server has a problem — We have an error (visible in the image above) that says that the server can’t be reached. It’s currently doing that because we still need to build out our queries, schemas, and migrate over our tables and data.

Let’s flip over to the next section and get to work on our GraphQL server structure.

GraphQL is a strongly-typed querying language. This means that it validates the types of data that we are manipulating while using it. In order for this to work, we have to define Types — These will correspond directly to the tables in our SQL database (although you are certainly free to use no-SQL databases like MongoDB with GraphQL), and correlate to the use of objects or structs in Object Oriented Programming with languages like Java, Golang, and C.

In order to define a type, you must use imports from the graphql dependency to define strings, integers, and other data types that you expect to receive through GraphQL for each field (username, email, etc.). Here’s an example of a UserType that we’ll be using in our server:

Notice how we’re requiring the package graphql and then destructuring out our types from it (strings, ID, object, etc.). We can then define a schema, or group of fields, of what we expect to receive for a given object of data (in this case, our users). Finally, we’re exporting our UserType out to use later in our server.

Go ahead and make a file called types.js in the schema directory of the server in your server files. Look over the code below, and then put the following code into the file:

See that field called candy? That’s interesting, right?

Remember how we were talking earlier about edges and how they connect nodes, or vertices, together? Well, this is where we’re defining an edge that will connect us along our graph in our database to another node. Notice that we define the candy field as being a GraphQLList (which means it will essentially show up as an array of candy in our JSON) of CandyType. Furthermore, the resolver function returns a database query where we search PostgreSQL for the parent’s id property (essentially the user’s id from the fields above).

We’ll use this field later to access data about the candy table associated with each user in the user table.

However, we have a bit of a problem — we don’t have a CandyType that this field seems to be referencing. For time’s sake, I’m going to give you this code to copy-and-paste into your code right below the UserType. Here’s the completed file code for you:

We’ve now completed the circle. We have a CandyType that will pull information from our database (and even has the ability to query the user associated with each candy in the user field above) but is also connected to its corresponding user (in a one-to-many relationship from the user table to the candy table).

We’re about to see how useful all of this is. The next sections will be crazy, but they’ll go really fast. We’ll have your server finished in no time. 🔥 🚒

Queries are analogous to GET requests on a RESTful API, but the way in which we can write them in GraphQL (which we saw at the beginning of this article) makes them really unique and extremely declarative.

In software engineering, declarative design (in case you don’t want to spend the next 10 minutes waist-deep in that Wikipedia link) is any process that allows you to write your code in a way that describes what it does instead of how it does it.

Create a new file in your schema directory called query.js, and paste the following code into it. It’s a lot, but there’s a ton of repetition (as you’ll see soon) that makes it ultimately easy to learn:

Don’t worry. Like I said, it’s a lot of repetition. Let’s take the getCandyById query at the end of the file above and dissect it (since it’s close to us right now and is a great example of the rest of the queries).

First, we define what “type” our query is supposed to return. We just coded those up in the last section, and we imported them at the beginning of this query.js file.

Second, we have a description of the query. This will pop up in GraphQL Playground. It’s not necessary, but it’s a really nice touch for other developers to read in GraphQL Playground later when they’re testing out writing queries for our server.

Next, we have our arguments, or args. These are what we expect our server to receive when someone makes this getCandyById query. In this instance, we have an id argument of type GraphQLID. This is a unique import from the graphql package that allows the argument sent to our server to be either a number or a string (i.e. 1 or “1”).

Additionally, we have a resolve function. This takes in parent properties (which we aren’t using here) as the first argument and args (or arguments, our id in this case) as the second one. We then proceed to query our PostgreSQL database and return the response in our promise. If the data cannot be found, we return a new error with a message.

Finally, navigate over to your schema.js file, and update it to look like this:

We just imported the queries from query.js and placed it into our schema setup. The only thing we still need to do in order to use our server is to roll out some mutations.

Hold onto your butts. 👍

The final puzzle piece for our server is to upgrade our code with “mutations.” These are the GraphQL equivalents of POST, PUT, and DELETE requests in a RESTful API.

Create a new file called mutation.js and paste the following code in:

Once again, I know this looks like a lot, but it’s ultimately just a lot of repetition. Let’s look at the deleteUser mutation here at the end of the file as an example.

Notice that we’ve once again defined our type, UserType. In addition, we’re expecting an argument of id. Finally, we are using a resolver function to ping our PostgreSQL database and remove the row of user data where the args.id matches the user.

Look over the other mutations using this knowledge and see if you can figure out what everything else is doing. There’s nothing complicated here; it’s all just more of the same from what you’ve already seen. When you're done, update the schema.js file one more time to import our mutations and look like this:

It’s time to enjoy using our GraphQL server. 🍾 🎉 🎊 🙌

First, let’s migrate our data tables and seeds on PostgreSQL by running the following commands in your terminal:

Once you’ve finished, run the command yarn server in your terminal (if you’re not already running your server) and click on the localhost:4000/playground link.

Then, write the following query in the lefthand side of the screen and press the “play” button:

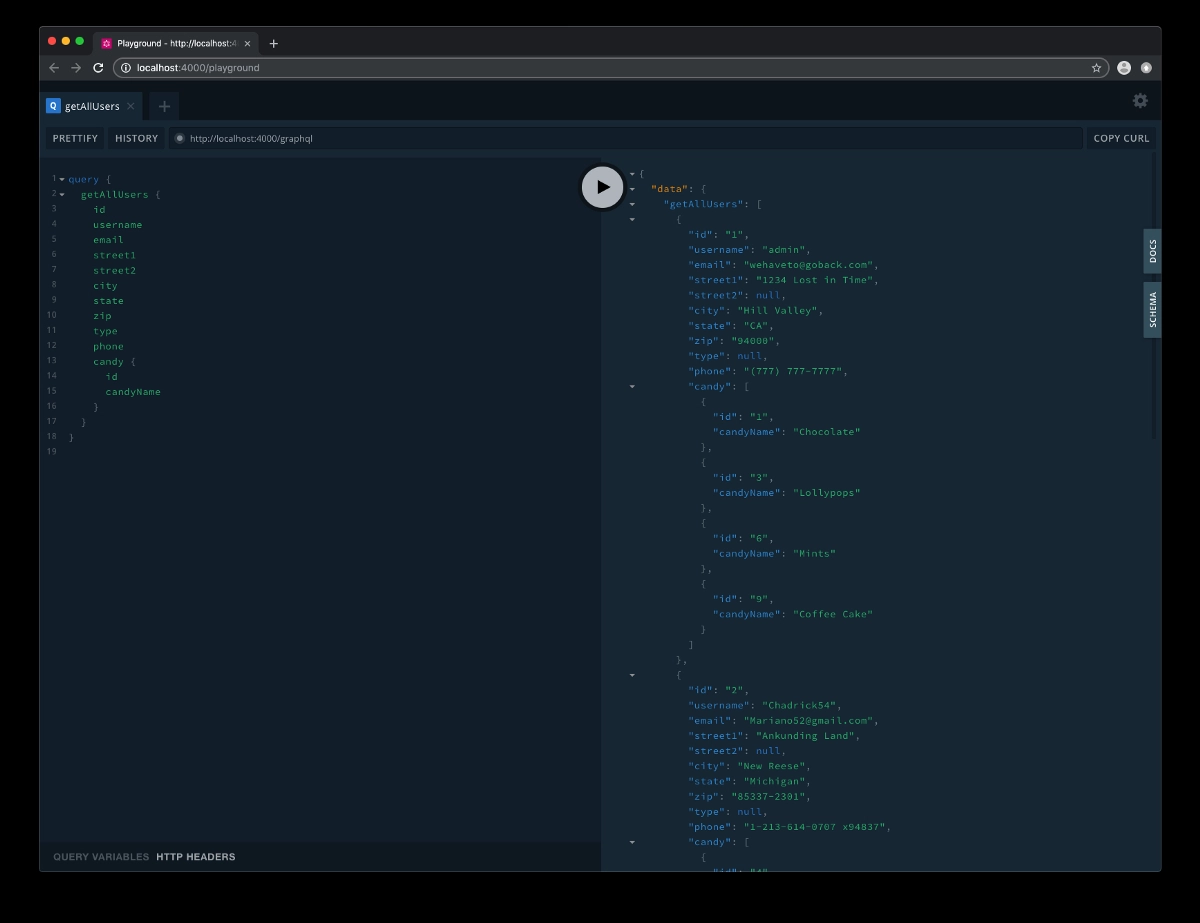

This queries our server for all users and returns the fields above that we requested. Your GraphQL Playground instance should look like this:

Finally, let’s do a quick mutation. Open a new tab in GraphQL Playground, and paste the following mutation into the lefthand side of the screen before pressing the “play” button:

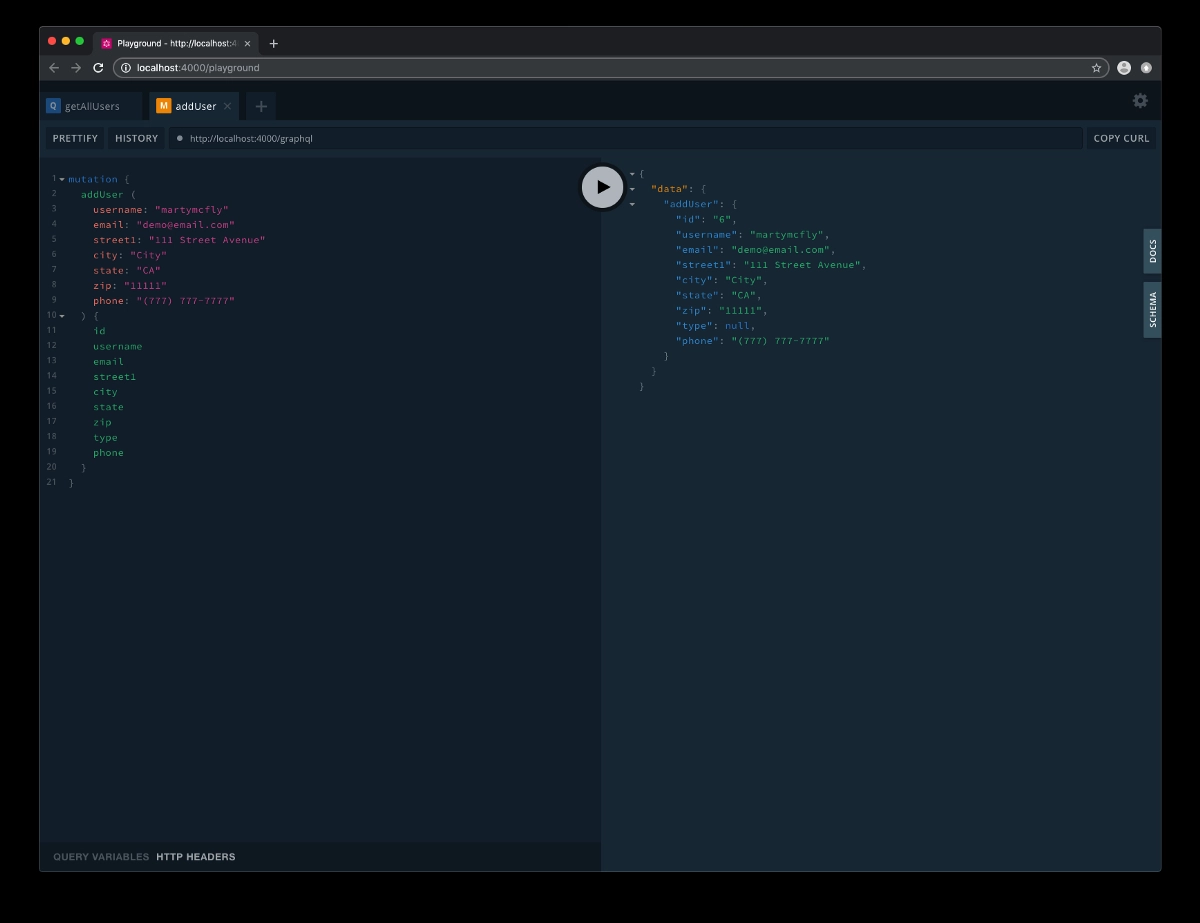

This should create a new user and return data as we’ve specified in the return fields we expect above. Your browser window should look like the following:

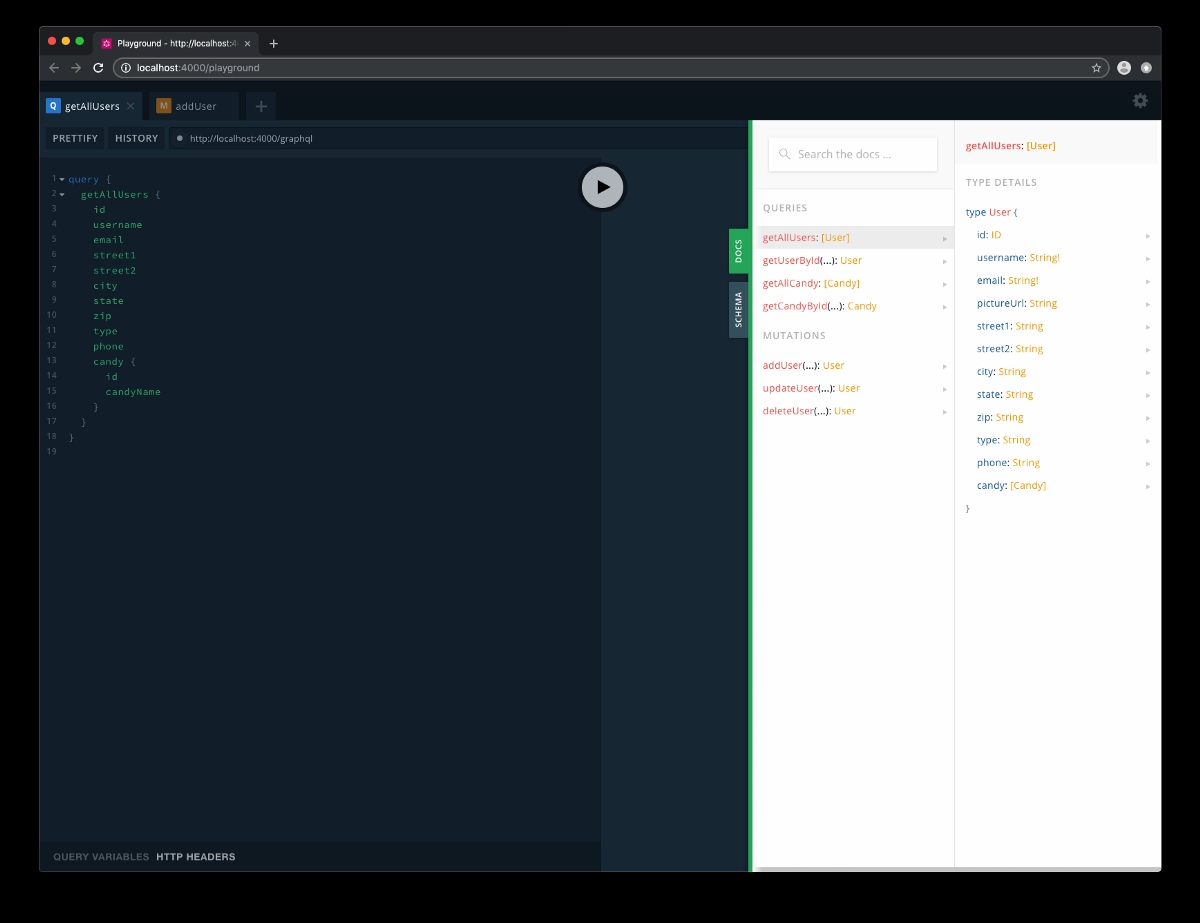

See if you can write other mutations and queries out. You can check out the various ones available to you (along with the types we created on the server) by clicking on the DOCS and SCHEMA tabs on the righthand side of the page:

Now that we’ve been through a full tour of duty with GraphQL, hopefully you can see why people enjoy using it. It’s simple (once you get it set up), and it’s honestly a lot of fun.

See if you can go back to the mutations.js file and make all of the mutations for the CandyType, including a createNewCandy, updateCandyById, and deleteCandyById.

Finally, as you continue to build out APIs, GraphQL is a great choice; pairing it with ExpressJS makes middleware implementation easy, and our PostgreSQL setup means you can now scale this framework with one of the most popular databases out there.

If you end up building something awesome, feel free to tweet me with it. I’d love to see what you can create. 🏗

Thanks for reading.

Nathan ☕️
